Refractoriness Under Load (RUL) and Creep in Compression
Refractoriness under load (RUL) and creep in compression are high‑temperature mechanical tests used to understand how refractory materials behave when they are both heated and mechanically stressed. RUL measures how a refractory deforms (softens) under a specified load as the temperature increases, helping to identify the temperatures at which a lining may begin to lose dimensional stability. Creep in compression measures the time‑dependent deformation that occurs when a material is held at an elevated temperature under a constant compressive load, providing insight into how a lining may gradually distort during prolonged service.

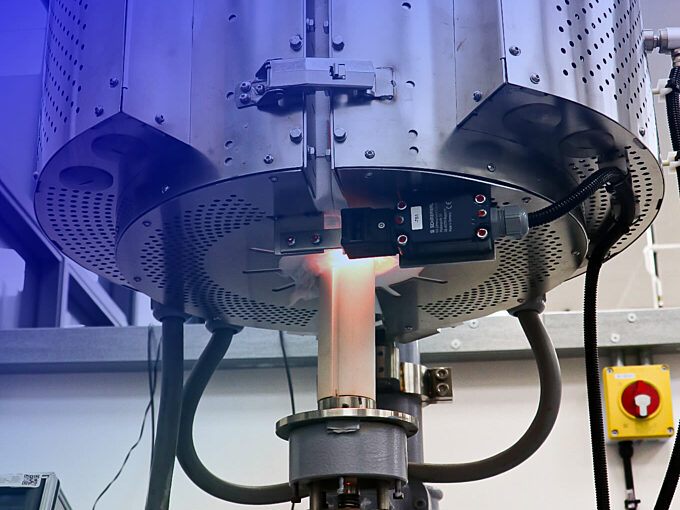

The Carbolite resistance‑heated RUL and creep furnace at Lucideon's Refractories Centre of Excellence, strengthens our high‑temperature mechanical testing capability for refractory materials. The system enables testing to recognised standards including BS EN 993‑8 (Refractoriness under Load) and BS EN 993‑9 (Creep in Compression), generating critical data on thermo‑mechanical behaviour under sustained load at elevated temperatures.
Overview
In real furnace and kiln environments, refractories experience the combined effects of temperature, load, and time. RUL and creep testing quantify how a material deforms under these conditions, helping you assess lining integrity, structural stability, and expected service life.
What RUL & creep testing enables
This capability supports:
- Determination of softening behaviour under load (RUL) - identify the onset and progression of deformation as temperature increases under a defined load
- Measurement of time‑dependent deformation (creep) - quantify deformation rate and total strain under constant load and temperature over time
- Evaluation of structural stability and service performance - generate data that reflects how refractories behave in furnace and kiln applications, where mechanical stress and high temperature interact
Why RUL and creep matter
RUL and creep data are essential for understanding how materials will perform in real service conditions, where temperature, load, and time interact to govern lining integrity and lifespan. These tests help differentiate materials that may appear similar in basic physical property measurements but behave very differently under sustained high‑temperature stress.
How the results support technical decisions
RUL and creep measurements can be used to:
- Support refractory selection for high‑load and high‑temperature zones
- Improve confidence in design decisions for linings, supports, and hot‑face materials
- Strengthen product development by linking formulation and microstructure to deformation behaviour
- Provide robust evidence for quality assurance and product benchmarking
- Reduce the risk of premature lining failure by using application‑relevant deformation data
RUL & Creep testing - at a glance
- Technique: Refractoriness Under Load (RUL) and Creep in Compression
- Equipment: Carbolite resistance‑heated RUL & creep furnaces
- Standards: BS EN 993‑8 (RUL) and BS EN 993‑9 (Creep in compression)
- Measures: softening/deformation under load versus temperature; time‑dependent deformation under sustained load
- Applications: furnace and kiln lining assessment, material selection, product development, and quality assurance
Part of our Refractories Centre of Excellence
This investment further strengthens our ability to deliver robust, application‑relevant test data to support refractory selection, product development, and quality assurance, helping you make confident, evidence‑based decisions for high‑temperature service.
