Pyrometric Cone Equivalent (PCE) Testing for Standardized Refractoriness Classification and Quality Control Data
Pyrometric Cone Equivalent (PCE) testing is used to assess the refractoriness of a material under defined heating conditions by comparing its softening behavior to standard pyrometric reference cones. It provides a practical, standardized indicator of high‑temperature performance and consistency, particularly useful for material classification, specification compliance, and benchmarking between products.

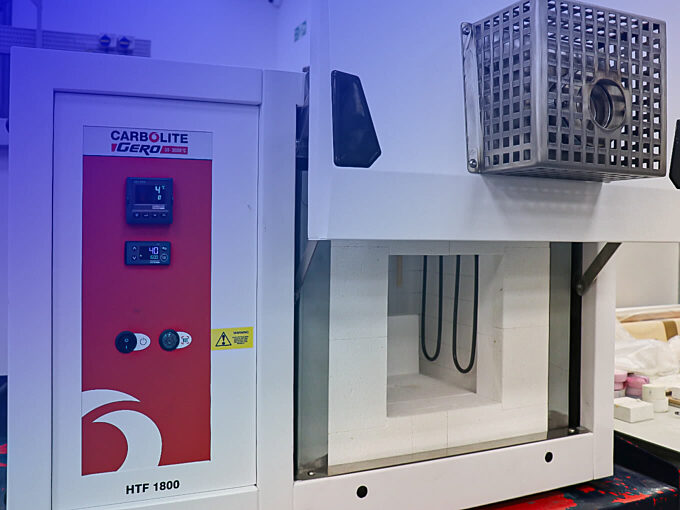

The Carbolite PCE furnace (rated to 1800°C / 3272°F) at Lucideon's Refractories Centre of Excellence, enhances our capability to determine the Pyrometric Cone Equivalent (PCE) of refractory materials. Testing is carried out in accordance with recognized methods such as BS EN 993‑12 (Determination of Pyrometric Cone Equivalent), enabling reliable comparison of softening behavior relative to standard reference cones.
Overview
While no single test can fully represent service performance, PCE remains a valuable measure of refractoriness and softening tendency under controlled conditions. When used alongside RUL, creep, and thermal analysis data, PCE helps build a more complete understanding of refractory behavior, supporting confident selection, development, and verification of materials for high‑temperature applications.
What PCE testing enables
This capability supports:
- Determination of refractoriness and softening behavior under defined heating conditions
- Comparison of materials with standard pyrometric reference cones
- Quality control and verification of product consistency between batches or production runs
- Support for material classification and specification compliance
Why PCE matters
PCE provides a widely recognized, standardized way to compare the high‑temperature softening behavior of refractory materials. It can be particularly useful for:
- Screening and benchmarking materials during product development or reformulation
- Demonstrating consistency for quality assurance and customer specifications
- Providing supporting evidence when classifying materials or validating performance claims
- Complementing RUL and creep results to distinguish between "softening point" behavior and time‑dependent deformation in service
How the results support technical decisions
PCE data can be used to:
- Strengthen material selection decisions by comparing refractoriness across candidate products
- Support technical discussions around specification compliance and material classification
- Provide an additional, standardized datapoint for product development and optimization
- Underpin quality control programmes with repeatable, comparable results
PCE testing - at a glance
- Technique: Pyrometric Cone Equivalent (PCE) determination
- Equipment: Carbolite PCE furnace (up to 1800°C / 3272°F)
- Standard/method: BS EN 993‑12, Determination of pyrometric cone equivalent
- Measures: refractoriness / softening behavior relative to standard pyrometric reference cones
- Applications: material classification, specification compliance, product consistency checks, development and benchmarking
Part of our Refractories Centre of Excellence
This addition further strengthens our high‑temperature testing suite, supporting refractory development, quality assurance, and technical decision‑making with robust, standardized data.
Speak to our team
To discuss sample requirements, the most appropriate test program, or how PCE fits alongside RUL, creep and thermal analysis for your application, contact our refractories experts.
